Discount when buying mini frames with packaging
(from 500 pcs.)

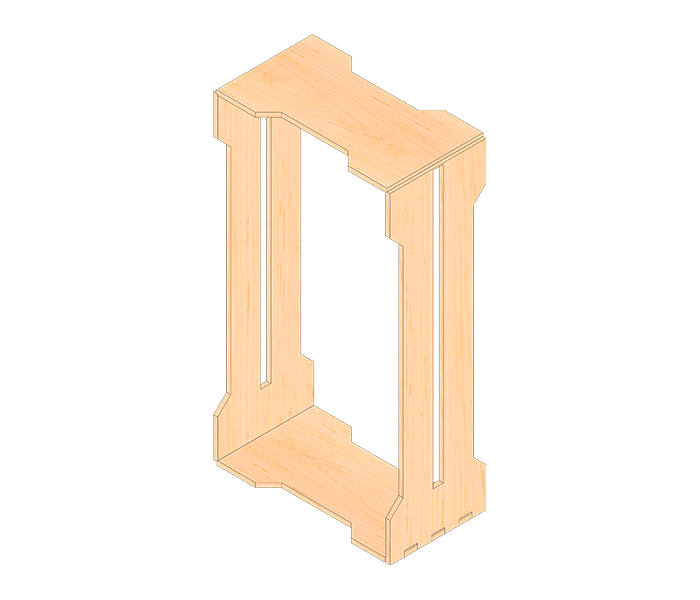

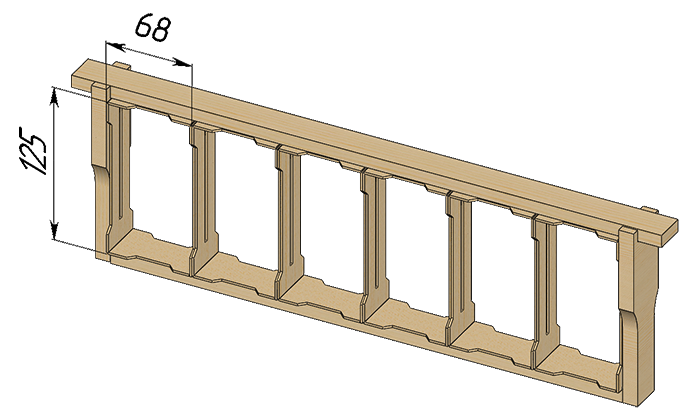

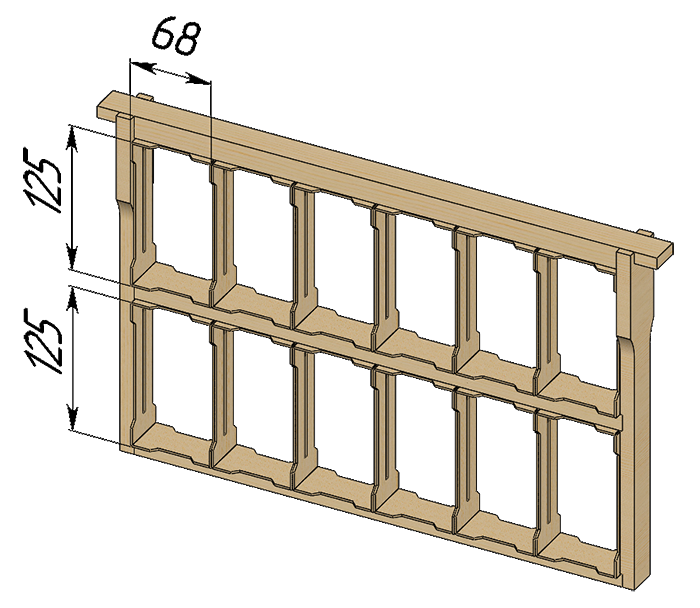

A distinctive feature of the mini-frames with side slots is the presence of two slots on the long ("side") ones sides of the frames.Through the side slots, one piece of wax is laid through the entire row of mini-frames. Thanks to this, it turns out to be the fastest way to put on such frames.
Mini-frames are supplied in stacks (sets) of 50 pieces, so when ordering, you must specify the number of stacks (sets), and not the mini-frames themselves. For example, to order 750 mini frames, you need to specify 15 stacks (sets).
| Dimensions, mm | Basic application | Additional application |
|---|---|---|
| 68х100х37 | Installation in 2 rows of 6 pieces in a standard Root socket frame | — |
| 68х110х37 | Installation of 6 pieces in one row in the store frame. | — |
| 68х115х37 | Installation of 6 pieces in one row in the store frame. | Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
| 68х125х37 | Installation of 6 pieces in one row in the store frame. | Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
|
102х100х37 |
Installation in 2 rows of 4 pieces in a standard Root socket frame | — |
|
102х110х37 |
Installation of 4 pcs. in one row in the store frame. | — |
|
102х115х37 |
Installation of 4 pcs. in one row in the store frame. |
Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
|
102х125х37 |
Installation of 4 pcs. in one row in the store frame. |
Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
|
102х125х37 |
Installation of 4 pcs. in one row in the store frame. |
Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
| Dimensions, mm | Basic application | Additional application |
|---|---|---|
| 69х132х37 |
Installation in 2 rows of 6 pieces in a standard Dadan socket frame |
— |
| 93х93х37 | Square mini frame for a special case | — |
|
88х77х37 |
Special size of the frames for the Alpine beehive | — |
| 68х50х37 | Installation in 4 rows of 6 pieces in a standard Root socket frame; | — |
| 102х120х37 | Installation of 4 pcs. in one row. Armenia Framework | — |
| 106х101х37 | Installation in 2 rows of 4 pieces in a frame “Root" Australia | — |
| Frames according to customer's size | ||
| We accept orders for batches from 2000 pcs. | ||
Sectional frames with side slots are thin wooden plates with grooves on the long (115 mm) sides. The grooves are made on both sides, this allows you to lay the wax through the entire row at once in one piece.
